Hy-Gain Amateur Antennas


HF Multiband Beams

Model
Elements
Bands
Boom Length
Turning Radius
Net Weight
 Wind Area
TH11DX
11
5
24' (7.3m)
22' (6.7m)
88 lb (40 kg)
12.5 sq ft

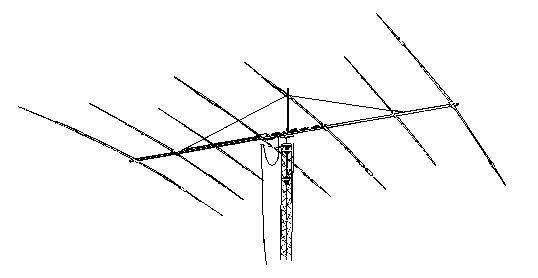

TH7DX
7
3
24' (7.3m)
20' (6.1m)
75 lb (34 kg)
9.4 sq ft
TH5MK2
5
3
19' (5.8m)
18.5' (5.6m)
57 lb   (25.8 kg)
7.4 sq ft

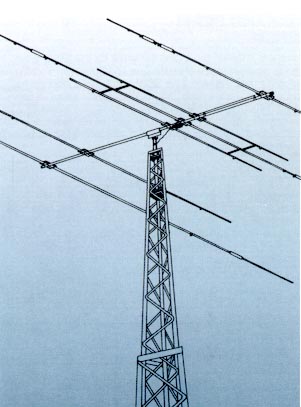

EX-14
6
3
14' (4.3m)
17.25' (5.3m)
45 lb   (20.4 kg)
7.5 sq ft
TH3MK4
3
3
14' (4.3m)
15.3' (4.67m)
35 lb (16 kg)
4.6 sq ft
TH2MK3
2
3
6' (1.8m)
14.3' (4.35m)
20 lb   (9.1 kg)
3.25 sq ft
DB-1217
7
2
14' (4.3m)
16.25' (5m)
40 lb (17 kg)
6.7 sq ft
TH3JR
3
3
12' (3.65m)
14.3' (4.5m)
21 lb   (11.7 kg)
3.35 sq ft

All multiband beams are rated for 1500 watts PEP (except TH3JR - 600 watts PEP) and F/B better than 20 dB (except TH2MK3 - 15 dB).  TH11DX is rated at 4000 watts PEP.

HF Log-Periodic Antennas

Model Elements Frequency Range Boomlength Turning Radius Net Weight Wind Area

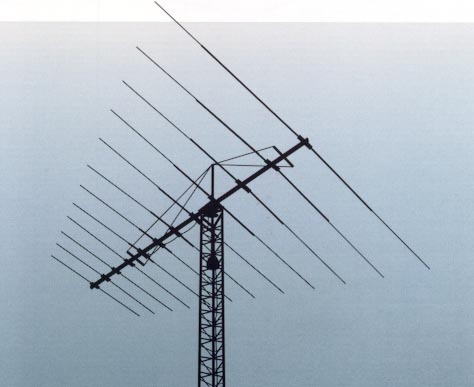

LP-1009AA (UHF)
12
13-30 MHz
27' (8.2m)
22.5' (6.9m)
95 lb (43kg)
12.5 sq. ft.
LP-1009AB (Type N)
12
13-30 MHz
27' (8.2m)
22.5' (6.9m)
95 lb (43kg)
12.5 sq. ft.

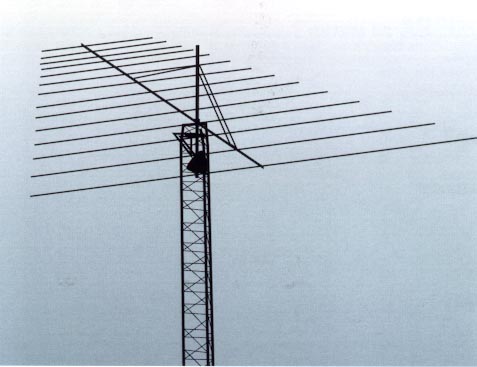

LP-1010AA (UHF)
14
10-30 MHz
36' (11m)
28.5' (8.7m)
155 lb (70kg)
16 sq. ft.
LP-1010AB (Type N)
14
10-30 MHz
36' (11m)
28.5' (8.7m)
155 lb (70kg)
16 sq. ft.

NOTE:  The gain of these Log-Periodic antennas is typ. 4.7-5.3 dBd with F/B typ. 15-22 dB.

Other models for higher and lower frequency coverage are also available.  Contact our Sales Dept. for more information.

HF Monoband Beams

Model
Band
Elements
Settings*
Boom Length
Turn radius
Net Weight
103BA
10
3
Novice,Low,Mid,OSCAR
8'
10' (3.05m)
15 lb (6.8kg)

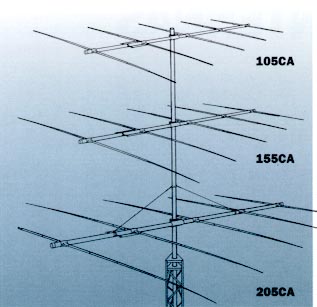

105CA
10
5
CW,Low,Mid,OSCAR, Broad, Max F/B, Max gain
24'
15' (4.6m)
153BA
15
3
CW, Phone
12'
14.25' (4.3m)
21 lb (9.5kg)
155CA
15
5
CW, Mid, Phone, Max F/B, 12-Meter
26'
17.5' (5.3m)
203BA
20
3
CW, Phone
16'
20' (6.1m)
32 lb (14.5kg)

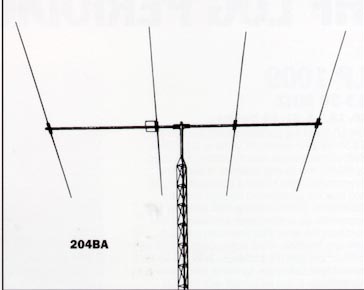

204BA
20
4
CW, Phone, 17-Meter
26'
22.5' (6.9m)
50 lb (22.7kg)
205CA
20
5
CW, Phone, 17-Meter
34'
25' (7.6m)
60 lb (27kg)
Disc 7-1
40
1
Tuneable 7.0-7.35 MHz
N/A
22.5' (6.9m)
23 lb (10.4kg)
Disc 7-2
40
2
CW, Mid, Phone
22.6' (6.9m)
25' (7.6m)
56 lb (25.3kg)
Disc 7-3
40
(3)
CW, Mid, Phone
35' (10.7m)
28.5' (8.8m)
98 lb (44kg)

HF Verticals

Model
Bands
Max Pwr*
Height
Mast OD
Weight

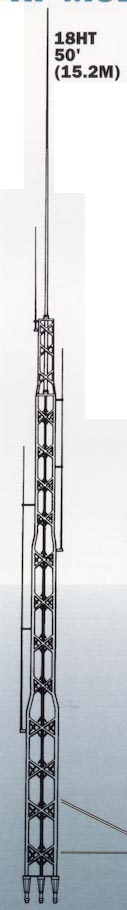

18HT Hy-Tower
10,15,20,40,80
1500 watts
53'
N/A
114 lb
DX-88
10,12,15,17,20,30,40,80
700 watts
24.75'
1.625"
18 lb
DX-77
10,12,15,17,20,30,40
750 watts
29'
2.125"
25 lb

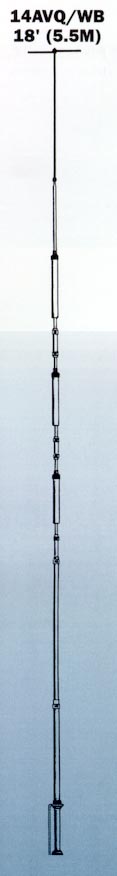

14AVQ
10,15,20,40
750 watts
18'
1.625"
9 lb

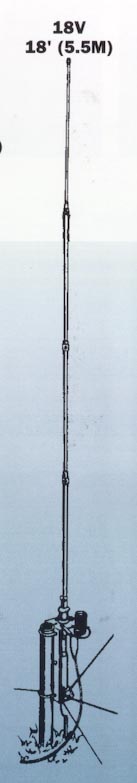

18V
10-80 adjustable
750 watts
18'
1.625"
4 lb

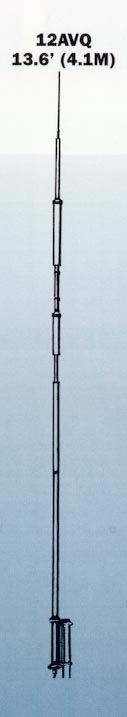

12AVQ
10,15,20
750 watts
13'
1.625"
9 lb

** DX-77 requires NO radials.  All others require radials or ground rods.
