Part Number: TN62-3161-C06

Details & Specifications

Description TNC Crimp Panel Mount Jack - Front Entry - Integral Contact To Fit Cable Types RG174, RG188, RG316, LBC100 Fixing Method Crimp Body Brass, Nickel Plated Coupling Nut Brass, Nickel Plated Dielectric PTFE Ferrule Brass, Nickel Plated O Ring Rubber Pin Brass, Gold Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 4 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum

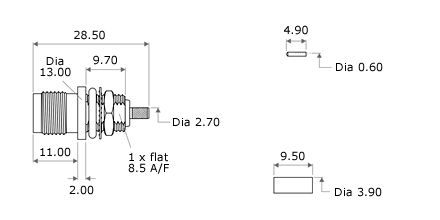

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=8.90mm, B=9.65mm

Assembly Instructions

Strip Dimensions A=8mm, B=2mm, C=2.5mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Crimp the pin onto the centre core and slide into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre pin is fully located within the integral contact. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 3.25mm Hex., 0.72mm Square
