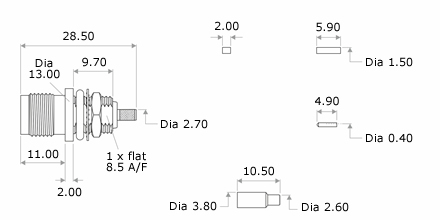

| Strip Dimensions | A=7.5mm, B=2.5mm, C=2.5mm |
1)
Slide the ferrule onto the cable and strip the cable to the dimensions
as shown, taking care not to nick the centre conductor or braid.
|
2)
Slide the tube over the dielectric and under the cable braid. Slide the
insulator over the centre core and onto the dielectric and crimp
the pin onto the centre core. Slide the pin into the body until it
fully locates within the integral contact, ensuring that the cable braid
is on the outside of the connector mandril.
|
3) Slide the ferrule forward and crimp.
|
| Crimp Hex. Sizes | 3.25mm Hex., 0.72mm Square |
