Part Number: TN17-0058-C06
TN17-0058-C06
Details & Specifications

DescriptionTNC Crimp Right Angle Plug
To Fit Cable TypesRG58, URM43, LBC195, LBC195 ExtraFlex
Fixing MethodCrimp
BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricDelrin
FerruleBrass, Nickel Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency11 GHz
Temperature Range-55 to +85 degrees C
Working Voltage500 Volts RMS Maximum

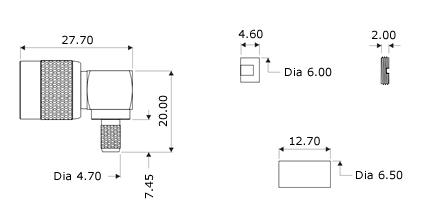

Technical Illustration
TN17-0058-C06
Assembly Instructions
Strip DimensionsA=8mm, B=5mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.

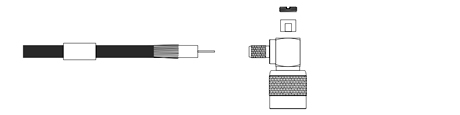

2) Insert the cable into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre core locates in the internal mounting post.

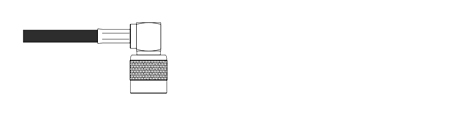

3) Slide the ferrule forward and crimp. Solder the centre core of the cable to the mounting post and fit the insulator and end cap.
Crimp Hex. Sizes5.41mm Hex., Solder centre core
