Part Number: TN15-50-A06-1

Details & Specifications

Description TNC Terminator with Chain Body Brass, Nickel Plated Coupling Nut Brass, Nickel Plated Dielectric Delrin Pin Brass, Gold Plated Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 1 GHz Temperature Range -55 to +85 degrees C Working Voltage 500 Volts RMS Maximum

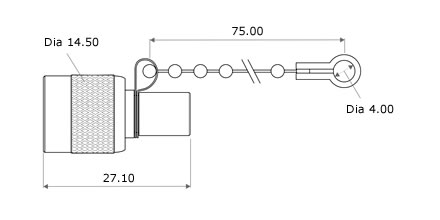

Technical Illustration
