Part Number: TN15-0519-C06-R
TN15-0519-C06-R
Details & Specifications

DescriptionTNC Reverse Polarity Crimp Plug
To Fit Cable TypesH1000, LBC400, LBC400 ExtraFlex, LBC400 LSZH
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactPhosphor Bronze, Gold Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
FerruleBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency11 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum

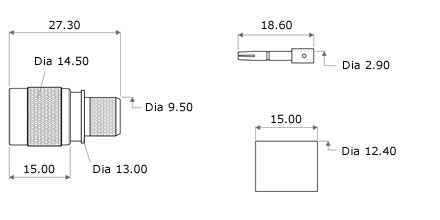

Technical Illustration
TN15-0519-C06-R
Assembly Instructions
Strip DimensionsA=7.7mm, B=0mm, C=3.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the contact onto the centre core and slide the contact into the body, ensuring that the contact is captivated and the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes10.90mm Hex., 2.95mm Hex.
