Part Number: TN02-L200-C06

Details & Specifications

Description TNC Crimp Bulkhead Jack, Hex. Flange To Fit Cable Types LMR200 Fixing Method Crimp Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric Delrin Ferrule Brass, Nickel Plated Locknut Brass, Nickel Plated O Ring Rubber Washer SS41, Nickel Plated Cable Retention Equal to breaking strain of cable Durability 500 mating cycles Impedance 50 ohms Max. Frequency 11 GHz Temperature Range -55 to +85 degrees C Working Voltage 500 Volts RMS Maximum Maximum Panel Thickness 5.5mm

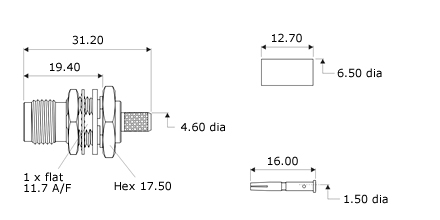

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=12.00mm, B=12.90mm

Assembly Instructions

Strip Dimensions A=7mm, B=6mm, C=3mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Solder the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 5.41mm Hex., Solder centre core
