Part Number: TN02-0402-R49

Details & Specifications

Description TNC Direct Solder Bulkhead Jack To Fit Cable Types 141 Semi-rigid, RG402 Conformable, RG402 Conformable FEP Fixing Method Solder Body Brass, Tri-Alloy Plated Contact Brass, Gold Plated Dielectric PTFE Backnut Brass, Gold Plated Locknut Brass, Tri-Alloy Plated O Ring Silicon Rubber Washer Brass, Tri-Alloy Plated Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 11 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum

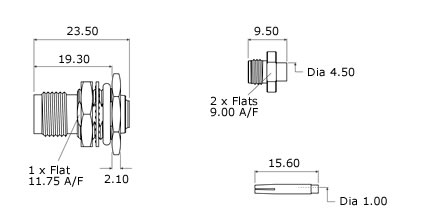

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=12.00mm, B=12.90mm

Assembly Instructions

Strip Dimensions A=0.0mm, B=5.9mm 1) Strip the cable as shown ensuring the Dielectric is flush with the cable Jacket leaving 5.90mm exposed centre conductor. 2) Solder the rear of the Backnut to the cable jacket ensuring the front face of the back nut is flush with the cable jacket. Trim off any protruding dielectric back to the front face of the Backnut. Solder the contact onto centre conductor. 3) Insert the cable into the body and tighten backnut.
