Part Number: TN02-0058-C06
TN02-0058-C06
Details & Specifications

DescriptionTNC Crimp Bulkhead Jack, Hex. Flange
To Fit Cable TypesRG58, LBC195, LBC195 ExtraFlex, URM43
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricDelrin
FerruleBrass, Nickel Plated
LocknutBrass, Nickel Plated
O RingRubber
WasherSS41, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency11 GHz
Temperature Range-55 to +85 degrees C
Working Voltage500 Volts RMS Maximum
Maximum Panel Thickness5.5mm

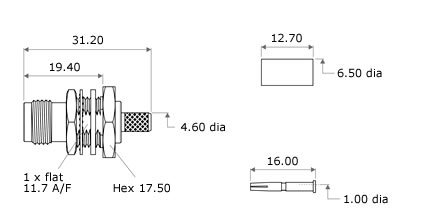

Technical Illustration
TN02-0058-C06
Panel Fixing Information
Cut-out DimensionsA=12.00mm, B=12.90mm

Assembly Instructions
Strip DimensionsA=7mm, B=6mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
