Part Number: PC15-0174-C01-2

Details & Specifications

Description PCB Termination Vertical Direct Crimp Receptacle To Fit Cable Types LBC100, RG174, RG188, RG316 Fixing Method PCB Body Brass, Gold plated Ferrule Brass, Gold plated

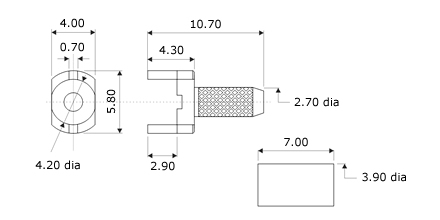

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=5.08mm, B=2.54mm, Holes: 2x1.20mm, 1x0.60mm

Assembly Instructions

Strip Dimensions A=6mm, B=2.5mm, C=3.5mm Crimp Hex. Sizes 3.25mm Hex.
