Part Number: NT15-L600-C49-2

Details & Specifications

Description N Type Crimp Plug, Hex Nut, Tri-Alloy Plated To Fit Cable Types LBC600 Fixing Method Crimp Body Brass, Tri-Alloy Plated Coupling Nut Brass, Tri-Alloy Plated Dielectric PTFE Ferrule Brass, Tri-Alloy Plated Pin Phosphor Bronze, Gold Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 2500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 4 GHz Temperature Range -65 to +165 degrees C Working Voltage 1500 Volts RMS Maximum

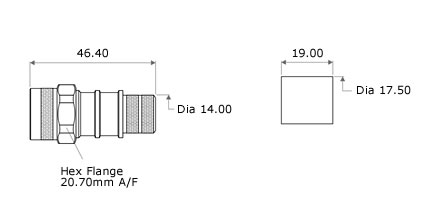

Technical Illustration

Assembly Instructions

Strip Dimensions A=12.0mm, B=6.0mm, C=7.0mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Point the centre core, making sure to remove any burrs, and slide the cable into the body until fully located, ensuring that the cable braid is on the outside of the connector mandril. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 15.5mm Hex.
