Part Number: NT15-50-A06
NT15-50-A06
Details & Specifications

DescriptionN Type Terminator
Fixing MethodNot Applicable
BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
GasketSilicone Rubber
PinBrass, Gold Plated
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms, 1W
Max. Frequency18 GHz
Temperature Range-65 to +165 degrees C
Working Voltage1500 Volts RMS Maximum
Additional InformationReturn Loss [VSWR]

11GHz - 23.1dB [1.15]
18GHz - 25.0dB [1.11]

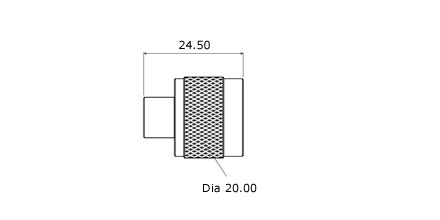

Technical Illustration
NT15-50-A06
