Part Number: NT15-0519-C06
NT15-0519-C06
Details & Specifications

DescriptionN Type Crimp Plug
To Fit Cable TypesLBC400, LBC400 ExtraFlex
Fixing MethodCrimp
BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
FerruleBrass, Nickel Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-65 to +165 degrees C
Working Voltage1500 Volts RMS Maximum
Additional InformationFor Hex Nut Tri-Alloy version see alternative part number NT15-0519-C49-2.

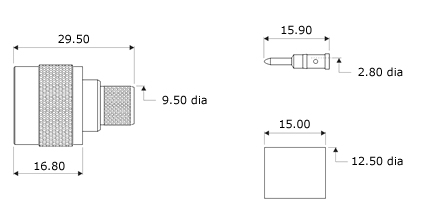

Technical Illustration
NT15-0519-C06
Assembly Instructions
Strip DimensionsA=10mm, B=1mm, C=4mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes10.90mm Hex., 2.95mm Hex.
