Part Number: NT15-0405-R06-2
NT15-0405-R06-2
Details & Specifications

DescriptionN Type Direct Solder Plug
To Fit Cable Types085 Semi-rigid, RG405 Conformable, RG405 Conformable FEP
Fixing MethodSolder
BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency11 GHz
Temperature Range-65 to +165 degrees C
Working Voltage1500 Volts RMS Maximum

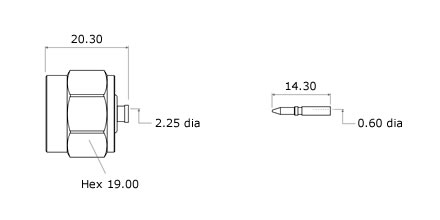

Technical Illustration
NT15-0405-R06-2
Assembly Instructions
Strip DimensionsA=0.0mm, B=4.0mm


1) Strip the cable to the dimensions as shown, taking care not to nick the centre core.
2) Solder the pin onto the cable.
3) Insert the cable and pin fully into the body until the pin captivates, then solder the outer shield of the cable to the connector mandril.
