Part Number: NT15-0058-C49-2
NT15-0058-C49-2
Details & Specifications

DescriptionN Type Crimp Plug, Hex Nut, Tri-Alloy Plated
To Fit Cable TypesRG58, LBC195, LBC195 ExtraFlex
Fixing MethodCrimp
BodyBrass, Tri-Alloy Plated
Coupling NutBrass, Tri-Alloy Plated
DielectricPTFE
FerruleBrass, Tr-Alloy Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles Minimum
Impedance50 ohms
Max. Frequency11 GHz
Temperature Range-65 to +165 degrees C
Working Voltage1500 Volts RMS Maximum
Additional InformationSee alternative for Circular Nut, Nickel Plated variant.

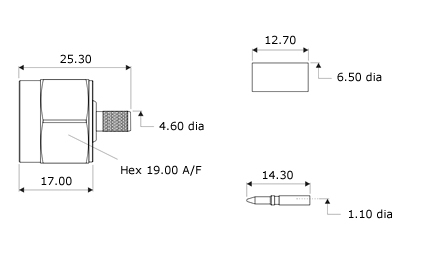

Technical Illustration
NT15-0058-C49-2
Assembly Instructions
Strip DimensionsA=7.5mm, B=3.5mm, C=3.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
