Part Number: NT10-0400-C06
NT10-0400-C06
Details & Specifications

DescriptionN Type Crimp Jack
To Fit Cable TypesGTX223F, RG142, RG223, RG400
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricDelrin
FerruleBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-55 to +85 degrees C
Working Voltage1500 Volts RMS Maximum

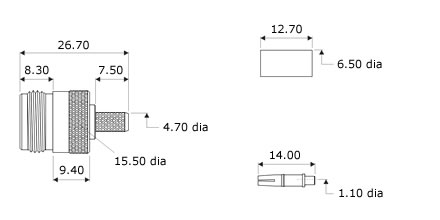

Technical Illustration
NT10-0400-C06
Assembly Instructions
Strip DimensionsA=9mm, B=2mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
