Part Number: NT06-0058-C06

Details & Specifications

Description N Type Crimp Flange Jack To Fit Cable Types LBC195, LBC195 ExtraFlex, LBC195 LSZH, LMR195, RG58, URM43 Fixing Method Crimp Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric PTFE Ferrule Brass, Nickel Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 2500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 6 GHz Temperature Range -65 to +165 degrees C Working Voltage 1500 Volts RMS Maximum

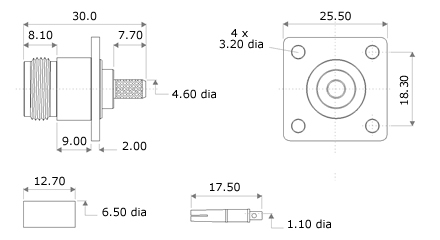

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=18.25mm, B=18.25mm, Holes: 4x3.20mm, 1x16.10mm

Assembly Instructions

Strip Dimensions A=8mm, B=2mm, C=4mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 5.41mm Hex., 1.69mm Hex.
