Part Number: NT02-D316-C06-12
NT02-D316-C06-12
Details & Specifications

DescriptionN Type Crimp Bulkhead Jack, Nickel Plated
To Fit Cable TypesRD316
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
LocknutBrass, Nickel Plated
O RingSilicone
WasherBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency3 GHz
Temperature Range-65 to +165 degrees C
Working Voltage1500 Volts RMS Maximum
Maximum Panel Thickness7.50 mm

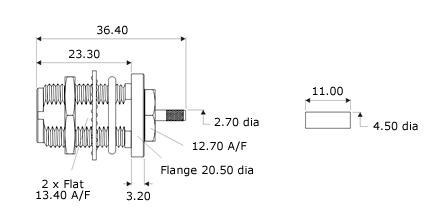

Technical Illustration
NT02-D316-C06-12
Panel Fixing Information
Cut-out DimensionsA=13.70mm, B=16.10mm
Assembly Instructions
Strip DimensionsA=8mm, B=5mm, C=8mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. Tin the centre conductor of the cable.
2) Slide the centre conductor into the contact assembly, ensuring that the cable braid is on the outside of the connector mandril and that the conductor is in as far as possible. Crimp the ferrule, then solder the conductor through the solder hole in the contact.
3) Slide contact through the insulator and screw contact assembly into body until tight.
Crimp Hex. Sizes3.83mm Hex., Solder centre core
