Part Number: NT02-0400-C06-1
NT02-0400-C06-1
Details & Specifications

DescriptionN Type Crimp Bulkhead Jack, Nickel Plated
To Fit Cable TypesRG142, RG223, RG400
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
LocknutBrass, Nickel Plated
O RingSilicone
PinBrass, Gold Plated
WasherBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-65 to +165 degrees C
Working Voltage1500 Volts RMS Maximum
Maximum Panel Thickness7.5mm
Additional InformationMaximum Panel Thickness = 7.50mm.

For shorter thread version see alternative part number NT02-0400-C06.

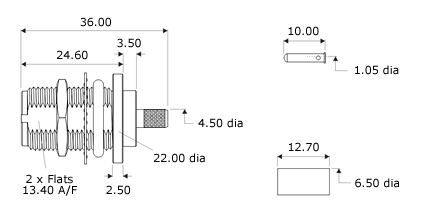

Technical Illustration
NT02-0400-C06-1
Panel Fixing Information
Cut-out DimensionsA=13.70mm, B=16.10mm
Assembly Instructions
Strip DimensionsA=8mm, B=5mm, C=4mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body until it is fully located, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
