Part Number: NT02-0214-C06-2

Details & Specifications

Description N Type Crimp Bulkhead Jack, Nickel Plated To Fit Cable Types RG214 Fixing Method Crimp Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric PTFE Ferrule Brass, Nickel Plated Locknut Brass, Nickel Plated O Ring Rubber Washer Brass, Nickel Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 2500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 11 GHz Temperature Range -65 to +165 degrees C Working Voltage 1500 Volts RMS Maximum

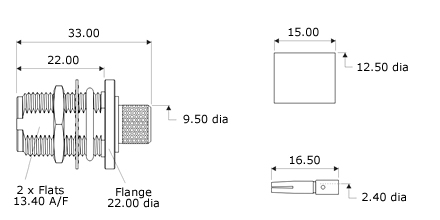

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=13.70mm, B=16.10mm

Assembly Instructions

Strip Dimensions A=8mm, B=5mm, C=4mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Crimp the contact onto the centre core and insert it into the body, ensuring that the cable braid is on the outside of the connector mandril and that the contact is fully located. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 10.90mm Hex., 2.95mm Hex.
