Part Number: NT02-0213-C06-2
NT02-0213-C06-2
Details & Specifications

DescriptionN Type Crimp Bulkhead Jack, Nickel Plated
To Fit Cable TypesRG213
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
LocknutBrass, Nickel Plated
O RingRubber
WasherBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency11 GHz
Temperature Range-65 to +165 degrees C
Working Voltage1500 Volts RMS Maximum

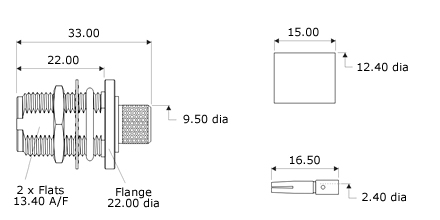

Technical Illustration
NT02-0213-C06-2
Panel Fixing Information
Cut-out DimensionsA=13.70mm, B=16.10mm

Assembly Instructions
Strip DimensionsA=8mm, B=5mm, C=4mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the contact onto the centre core and insert it into the body, ensuring that the cable braid is on the outside of the connector mandril and that the contact is fully located.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes10.90mm Hex., 2.95mm Hex.
