Part Number: NT02-0174-C06-2
NT02-0174-C06-2
Details & Specifications

DescriptionN Type Crimp Bulkhead Jack, Nickel Plated
To Fit Cable Types LBC100, LBC100 LSZH, RG174, RG188, RG316
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
LocknutBrass, Nickel Plated
O RingSilicone
PinBrass, Gold Plated
TubeBrass, Nickel Plated
WasherBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding2500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency3 GHz
Temperature Range-65 to +165 degrees C
Working Voltage1500 Volts RMS Maximum
Additional InformationRecommended Panel Thickness 7.5mm

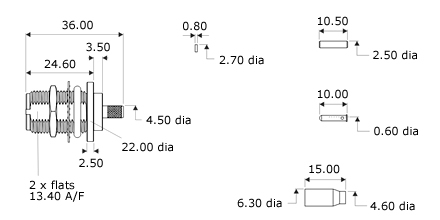

Technical Illustration
NT02-0174-C06-2
Panel Fixing Information
Cut-out DimensionsA=13.70mm, B=16.10mm
Assembly Instructions
Strip DimensionsA=9.5mm, B=1.5mm, C=3.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Slide the tube onto the cable and under the braid, then slide the insulator onto the centre core. Crimp the pin onto the centre core and slide the pin into the body until it is fully located, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
