Part Number: MZ15-3002-C06
MZ15-3002-C06
Details & Specifications

DescriptionType43 Crimp Socket
To Fit Cable TypesBT3002, TZC75024
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationIndustry reference - 5FS

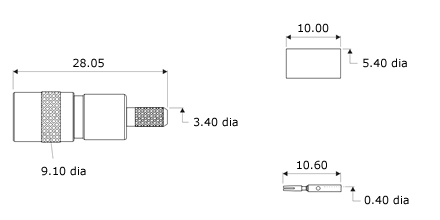

Technical Illustration
MZ15-3002-C06
Assembly Instructions
Strip DimensionsA=8mm, B=9mm, C=4.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the contact onto the centre core and insert it into the body, ensuring that the cable braid is on the outside of the connector mandril and that the contact is fully located.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes4.52mm Hex., 1.0mm Sq.
