Part Number: MZ10-1510-A06-10B
MZ10-1510-A06-10B
Details & Specifications

DescriptionType43 HDC U Link
Fixing MethodNot Applicable
BodyZinc Alloy, Gold / Nickel Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
PinPhosphor Bronze, Gold Plated
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum

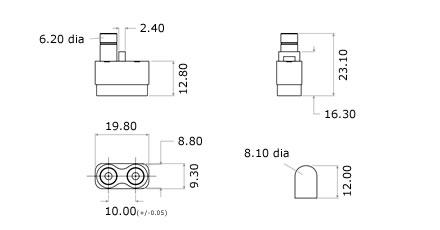

Technical Illustration
MZ10-1510-A06-10B
