Part Number: MX17-0402-R01
MX17-0402-R01
Details & Specifications

To Fit Cable Types141 Semi-rigid, RG402 Conformable, RG402 Conformable FEP
Fixing MethodSolder
BodyBrass, Gold Plated
DielectricPTFE
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-65 to +165 degrees C
Working Voltage250 Volts RMS Maximum

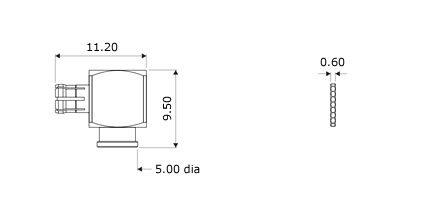

Technical Illustration
MX17-0402-R01
Assembly Instructions

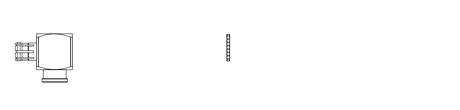

Strip DimensionsA=1.0mm, B=2.8mm


1) Strip the cable to the dimensions as shown, taking care not to nick the centre core.

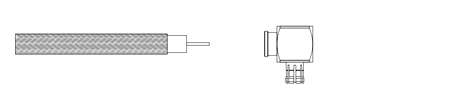

2) Slide the cable into the body so that the centre core of the cable locates in the internal mounting post. Solder the centre core.

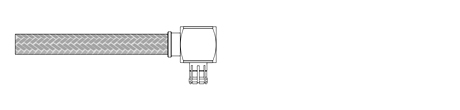

3) Solder the outer shield of the cable to the back of the connector and press in the end cap.
