Part Number: MX15-0174-C01
MX15-0174-C01
Details & Specifications

DescriptionMCX Crimp Plug, Gold Plated
To Fit Cable TypesRG174, RG188, RG316, LBC100
Fixing MethodCrimp
BodyBrass, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-65 to +165 degrees C
Working Voltage250 Volts RMS Maximum
Additional InformationSee alternative part for Nickel Plated version

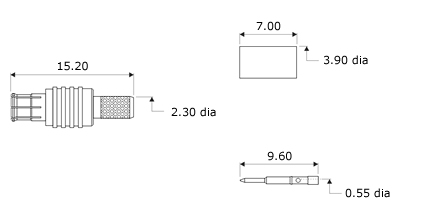

Technical Illustration
MX15-0174-C01
Assembly Instructions
Strip DimensionsA=4.5mm, B=1.3mm, C=2.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the pin is fully located.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.25mm Hex., 0.72mm Square
