Part Number: MX10-X800-N01-Z
MX10-X800-N01-Z
Details & Specifications

DescriptionMCX75 End Launch Jack
Fixing MethodPCB
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
Dielectric Withstanding500 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency3 GHz
Temperature Range-65 to +165 degrees C
Working Voltage250 Volts RMS Maximum
Additional InformationFor use on PCB thickness 1.57mm

Return Loss [VSWR]

600MHz - 33.9dB [1.042]
1200MHz - 28.7dB [1.077]
1800MHz - 25.2dB [1.117]
2400MHz - 22.8dB [1.154]
3000MHz - 21.0dB [1.20]

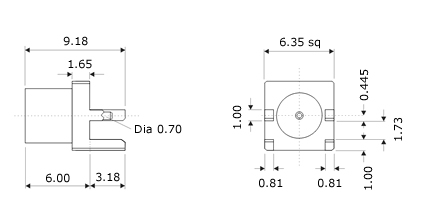

Technical Illustration
MX10-X800-N01-Z
