Part Number: MX10-X150-N01-Z

Details & Specifications

Description MCX75 Vertical PCB Jack Fixing Method PCB Body Brass, Gold Plated Contact Beryllium Copper, Gold Plated Dielectric PTFE Dielectric Withstanding 500 Volts RMS Maximum Durability 500 mating cycles Impedance 75 ohms Max. Frequency 4 GHz Temperature Range -65 to +165 degrees C Working Voltage 250 Volts RMS Maximum

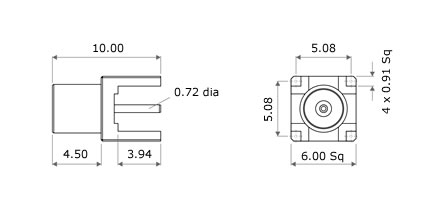

Technical Illustration

PCB Layout Information

PCB Layout Dimensions A=5.08mm, B=5.08mm, Holes; 5x1.30mm
