Part Number: MM17-0179-C01

Details & Specifications

Description MMCX Crimp Right Angle Plug, Gold Plated To Fit Cable Types RG179, RG179PE Fixing Method Crimp Body Brass, Gold Plated Dielectric PTFE End Cap Brass, Gold Plated Ferrule Brass, Gold Plated Pin Brass, Gold Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 6 GHz Temperature Range -65 to +165 degrees C Working Voltage 170 Volts RMS Maximum

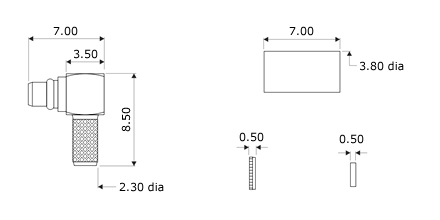

Technical Illustration

Assembly Instructions

Strip Dimensions A=5mm, B=1.5mm, C=1mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Insert the cable into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre core locates in the internal mounting post. 3) Slide the ferrule forward and crimp. Solder the centre core of the cable to the mounting post and fit the insulator and end cap. Crimp Hex. Sizes 3.25mm Hex., Solder centre core
