Part Number: MM15-D316-C01
MM15-D316-C01
Details & Specifications

DescriptionMMCX Crimp Plug, Gold Plated
To Fit Cable TypesRD316
Fixing MethodCrimp
BodyBrass, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-65 to +165 degrees C
Working Voltage170 Volts RMS Maximum

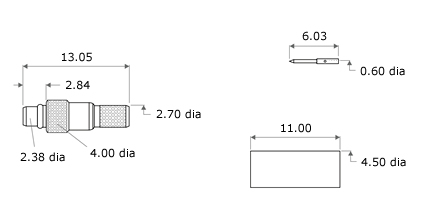

Technical Illustration
MM15-D316-C01
Assembly Instructions
Strip DimensionsA=5.0mm, B=2.5mm, C=2.0mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre contact is captivated.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.83mm Hex., 0.72mm Square
