Part Number: MM10-X170-N01
MM10-X170-N01
Details & Specifications

DescriptionMMCX Right Angle PCB Jack
Fixing MethodPCB
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
Dielectric Withstanding500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-65 to +165 degrees C
Working Voltage170 Volts RMS Maximum

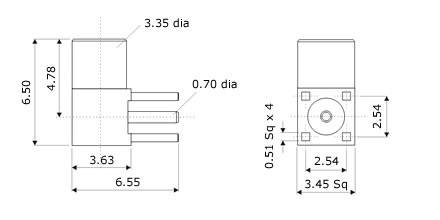

Technical Illustration
MM10-X170-N01
PCB Layout Information
PCB Layout DimensionsA=2.54mm, B=2.54mm, Holes; 5x0.80mm
