Part Number: MM10-0179-C01
MM10-0179-C01
Details & Specifications

DescriptionMMCX Crimp Jack, Gold Plated
To Fit Cable TypesRG179, RG179PE
Fixing MethodCrimp
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-65 to +165 degrees C
Working Voltage170 Volts RMS Maximum

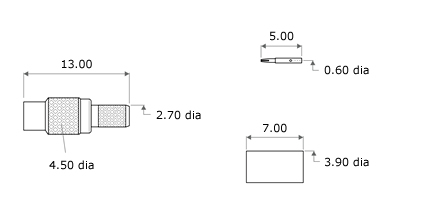

Technical Illustration
MM10-0179-C01
Assembly Instructions
Strip DimensionsA=5mm, B=1mm, C=1.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Solder the contact onto the centre core and slide the contact into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre contact is captivated.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.25mm Hex., Solder centre core
