1)

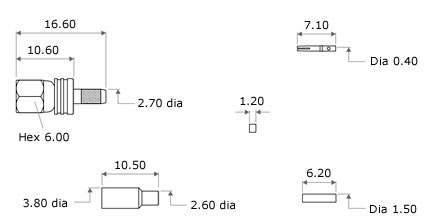

Slide the ferrule onto the cable and strip the cable to the dimensions
as shown, taking care not to nick the centre conductor or braid.
|
2)
Slide the tube over the dielectric and under the cable braid. Slide the
insulator over the centre core so that it butts up to the dielectric
and crimp
the contact onto the centre core. Slide the contact into the body
until it fully locates ensuring that the cable braid is on the outside
of the connector mandril.
|
3) Slide the ferrule forward and crimp.
|
| Crimp Hex. Sizes | 3.25mm Hex., 0.72mm Square |
