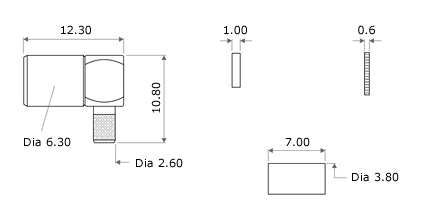

| Strip Dimensions | A=5.0mm, B=2.5mm, C=2.0mm |

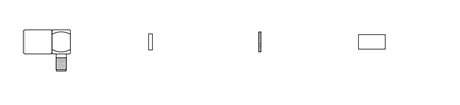

| 1)
Slide the ferrule onto the cable and strip the cable to the dimensions
as shown, taking care not to nick the centre conductor or braid. |

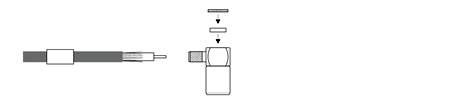

| 2)
Insert the cable into the body, ensuring that the cable braid is on the
outside of the connector mandril and that the centre core locates in
the internal mounting post. |

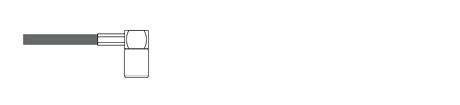

| 3)
Slide the ferrule forward and crimp. Solder the centre core of the
cable to the mounting post and fit the insulator and end cap. |
| Crimp Hex. Sizes | 3.25mm Hex., Solder centre core |
