Part Number: MB17-0174-C01-LP
MB17-0174-C01-LP
Details & Specifications

DescriptionSMB Crimp Right Angle Plug, Low Profile
To Fit Cable TypesAMC-174, LBC100, LBC100 LSZH, LMR100, RG174, RG188, RG316, WBC100
Fixing MethodCrimp
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage335 Volts RMS Maximum

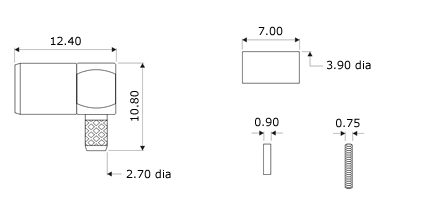

Technical Illustration
MB17-0174-C01-LP
Assembly Instructions
Strip DimensionsA=4.5mm, B=2.5mm, C=1.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.

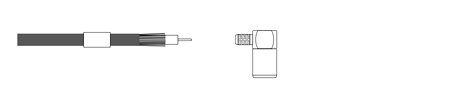

2) Insert the cable into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre core locates in the internal mounting post.

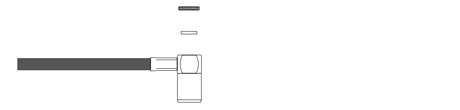

3) Slide the ferrule forward and crimp. Solder the centre core of the cable to the mounting post and fit the insulator and end cap.
Crimp Hex. Sizes3.25mm Hex., Solder centre core
