Part Number: MB15-NT15-1-P75Z
MB15-NT15-1-P75Z
Details & Specifications

BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
Coupling NutBrass, Gold Plated
DielectricPTFE
PinBrass, Gold Plated
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage335 Volts RMS Maximum
Additional InformationPlease note: 75 ohm N types are not intermateable with standard 50 ohm N types.

Return Loss [VSWR]:

1000MHz - 31.00dB [1.059]
2000MHz - 31.00dB [1.059]
3000MHz - 24.50dB [1.125]
4000MHz - 24.00dB [1.130]

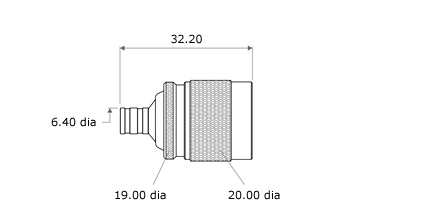

Technical Illustration
MB15-NT15-1-P75Z
