Part Number: MB15-NT10-1-P75Z

Details & Specifications

Body Brass, Gold Plated Contact Beryllium Copper & Brass, Gold Plated Coupling Nut Brass, Gold Plated Dielectric PTFE Dielectric Withstanding 750 Volts RMS Maximum Durability 500 mating cycles Impedance 75 ohms Max. Frequency 4 GHz Temperature Range -65 to +165 degrees C Working Voltage 335 Volts RMS Maximum Additional Information Please note: 75 ohm N types are not intermateable with standard 50 ohm N types. Return Loss [VSWR]: 1000MHz - 32.00dB [1.053] 2000MHz - 31.50dB [1.056] 3000MHz - 25.00dB [1.120] 4000MHz - 23.50dB [1.140]

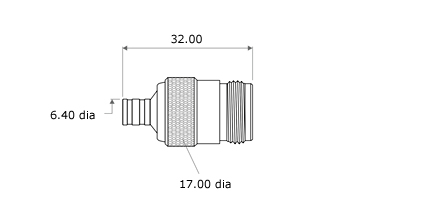

Technical Illustration
