Part Number: MB10-X150-N01
MB10-X150-N01
Details & Specifications

DescriptionSMB Vertical PCB Jack
Fixing MethodPCB
BodyBrass, Gold Plated
DielectricPTFE
PinBrass, Gold Plated
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage335 Volts RMS Maximum

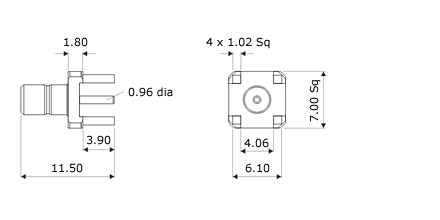

Technical Illustration
MB10-X150-N01
PCB Layout Information
PCB Layout DimensionsA=5.08mm, B=5.08mm, Holes; 4x1.70mm, 1x1.20mm
