Part Number: MB10-X150-N01-Z

Details & Specifications

Description SMB75 Vertical PCB Jack Fixing Method PCB Body Brass, Gold Plated Dielectric PTFE Pin Brass, Gold Plated Dielectric Withstanding 750 Volts RMS Maximum Durability 500 mating cycles Impedance 75 ohms Max. Frequency 2 Ghz Temperature Range -65 to +165 degrees C Working Voltage 335 Volts RMS Maximum Additional Information A minimum order quantity may apply when the available stock quantity is insufficient to fulfill your required order quantity.

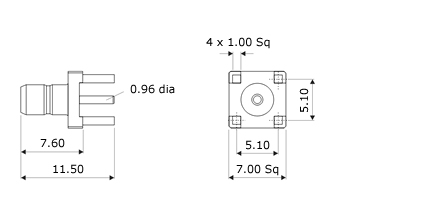

Technical Illustration

PCB Layout Information

PCB Layout Dimensions A=5.08mm, B=5.08mm, Holes; 4x1.70mm, 1x1.20mm
