Part Number: MB10-NT15-1-P75Z
MB10-NT15-1-P75Z
Details & Specifications

BodyBrass, Gold Plated
Coupling NutBrass, Gold Plated
DielectricPTFE
PinBrass, Gold Plated
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage335 Volts RMS Maximum
Additional InformationPlease note: 75 ohm N types are not intermateable with standard 50 ohm N types.

Return Loss [VSWR]:

500MHz - 35.00dB [1.036]
1000MHz - 31.00dB [1.059]
2000MHz - 32.00dB [1.053]
3000MHz - 25.00dB [1.12]
3800MHz - 22.50dB [1.16]

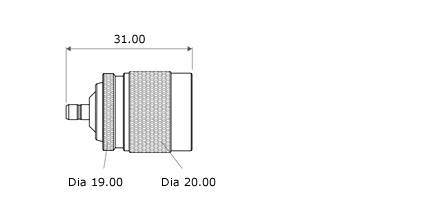

Technical Illustration
MB10-NT15-1-P75Z
