Part Number: MB10-D316-C01
MB10-D316-C01
Details & Specifications

DescriptionSMB Crimp Jack, Gold Plated
To Fit Cable TypesRD316
Fixing MethodCrimp
BodyBrass, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
PinPhosphor Bronze, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage335 Volts RMS Maximum

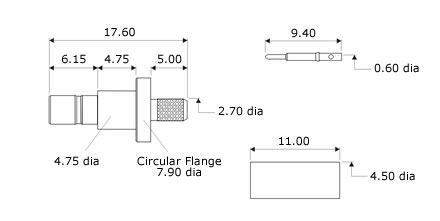

Technical Illustration
MB10-D316-C01
Assembly Instructions
Strip DimensionsA=5mm, B=3.5mm, C=2.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.83mm Hex., 0.72mm Square
