Part Number: MB02-D316-C01

Details & Specifications

Description SMB Crimp Bulkhead Jack, Gold Plated To Fit Cable Types RD316 Fixing Method Crimp Body Brass, Gold Plated Dielectric PTFE Ferrule Brass, Gold Plated Locknut Brass, Gold Plated Pin Phosphor Bronze, Gold Plated Washer Brass, Gold Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 750 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 4 GHz Temperature Range -65 to +165 degrees C Working Voltage 335 Volts RMS Maximum Maximum Panel Thickness 2.5mm

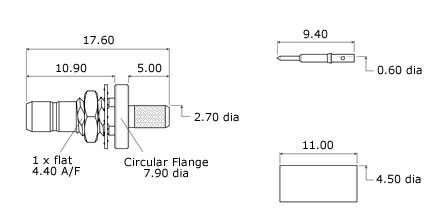

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=4.50mm, B=5.00mm

Assembly Instructions

Strip Dimensions A=5mm, B=3.5mm, C=2.5mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 3.83mm Hex., 0.72mm Square
