Part Number: MA36-X001-N04-3
MA36-X001-N04-3
Details & Specifications

DescriptionSMA Flange Jack, Solder Receptacle
Fixing MethodPanel
BodyPassivated Stainless Steel
ContactBeryllium Copper, Gold Plated
DielectricPTFE
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum

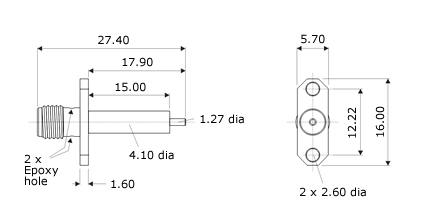

Technical Illustration
MA36-X001-N04-3
Panel Fixing Information
Cut-out DimensionsA=12.20mm, Holes: 2x2.60mm, 1x6.50mm
