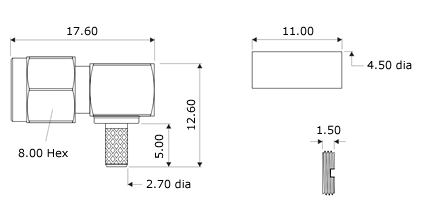

| Strip Dimensions | A=5.0mm, B=4.0mm, C=1.7mm |
| 1)
Slide the ferrule onto the cable and strip the cable to the dimensions
as shown, taking care not to nick the centre conductor or braid. |
| 2)
Insert the cable into the body, ensuring that the cable braid is on the
outside of the connector mandril and that the centre core locates in
the internal mounting post. |
| 3) Slide the ferrule forward and crimp. Solder the centre core of the cable to the mounting post and fit the end cap. |
| Crimp Hex. Sizes | 3.83mm Hex., Solder centre core |
