Part Number: MA17-0402-R01
MA17-0402-R01
Details & Specifications

DescriptionSMA Direct Solder Right Angle Plug
To Fit Cable Types141 Semi-rigid, RG402 Conformable, RG402 Conformable FEP
Fixing MethodSolder
BodyBrass, Gold plated
Coupling NutBrass, Gold plated
DielectricPTFE
PinBrass, Gold plated
Cable Retention27N
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Mating Torque0.34 to 0.57 NM (3 - 5 inch pounds)
Temperature Range-65 to +165 degress C
Working Voltage500 Volts RMS Maximum

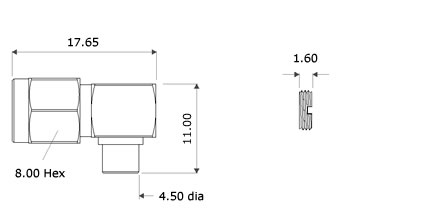

Technical Illustration
MA17-0402-R01
Assembly Instructions
Strip DimensionsA=1.7mm, B=2.5mm


1) Strip the cable to the dimensions as shown, taking care not to nick the centre core.

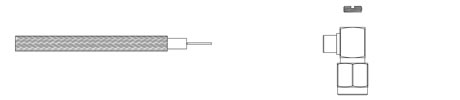

2) Slide the cable into the body so that the centre core of the cable locates in the internal mounting post. Solder the centre core.

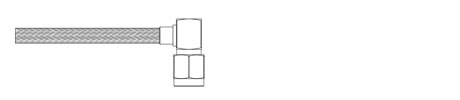

3) Solder the outer shield of the cable to the back of the connector and screw in the end cap.
