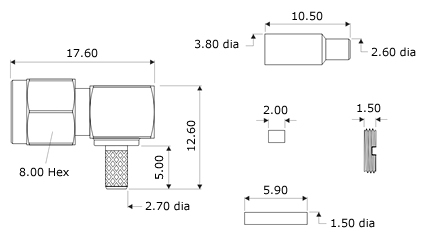

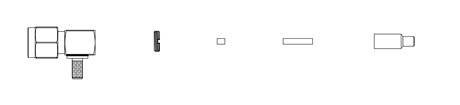

| Strip Dimensions | A=7.5mm, B=1.5mm, C=2.5mm |
| 1)
Slide the ferrule onto the cable and strip the cable to the dimensions
as shown, taking care not to nick the centre conductor or braid. |

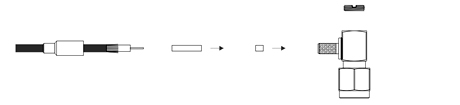

| 2)
Slide the tube onto the cable and under the braid, then slide the
insulator onto the cable. Then slide the cable into the body, ensuring
that the cable braid is on the outside of the connector mandril and that
the centre core locates in the internal mounting post. |

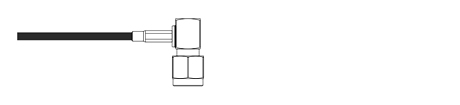

| 3) Slide the ferrule forward and crimp. |
| Crimp Hex. Sizes | 3.25mm Hex., Solder centre core |
