Part Number: MA17-0058-C01
MA17-0058-C01
Details & Specifications

DescriptionSMA Crimp Right Angle Plug, Gold Plated
To Fit Cable TypesRG58, LBC195, LBC195 ExtraFlex, URM43
Fixing MethodCrimp
BodyBrass, Gold Plated
Coupling NutBrass, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Mating Torque0.34 to 0.57 NM (3 - 5 inch pounds)
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum

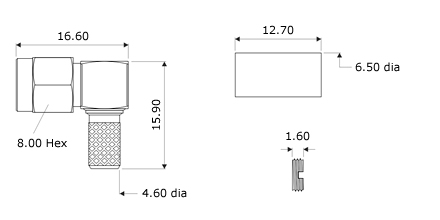

Technical Illustration
MA17-0058-C01
Assembly Instructions
Strip DimensionsA=8mm, B=2.5mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Insert the cable into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre core locates in the internal mounting post.
3) Slide the ferrule forward and crimp. Solder the centre core of the cable to the mounting post and fit the end cap.
Crimp Hex. Sizes5.41mm Hex., Solder centre core
