Part Number: MA15-TN15

Details & Specifications

Body Brass, Nickel Plated Coupling Nut Brass, Nickel Plated Dielectric Delrin Pin Brass, Gold Plated Dielectric Withstanding 1000 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 11 GHz Temperature Range -65 to +85 degrees C Working Voltage 500 Volts RMS Maximum

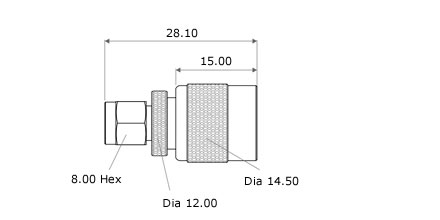

Technical Illustration
