Part Number: MA15-L240-C06
MA15-L240-C06
Details & Specifications

DescriptionSMA Crimp Plug, Nickel Plated
To Fit Cable TypesLBC240, LBC240 ExtraFlex, LBC240 LSZH
Fixing MethodCrimp
BodyBrass, Nickel Plated
DielectricPTFE
FerruleBrass, Nickel Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Mating Torque0.34 to 0.57 NM (3 - 5 inch pounds)
Temperature Range-65 to +165 degress C
Working Voltage500 Volts RMS

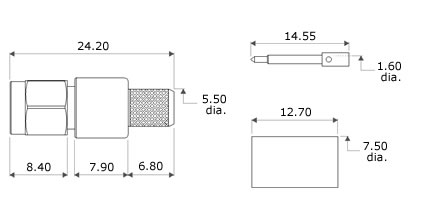

Technical Illustration
MA15-L240-C06
Assembly Instructions
Strip DimensionsA=8mm, B=2mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Solder or crimp the pin onto the centre core. Slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the pin is located in accordance with MIL-C-39012 interface dimensional requirements.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes6.48mm Hex., 1.69mm Hex.
