Part Number: MA15-L240-C01-R
MA15-L240-C01-R
Details & Specifications

DescriptionSMA Reverse Polarity Crimp Plug
To Fit Cable TypesLBC240, LBC240 ExtraFlex, LBC240 LSZH
Fixing MethodCrimp
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
Coupling NutBrass, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Mating Torque0.34 to 0.57 NM (3 - 5 inch pounds)
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum

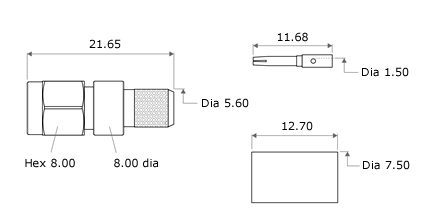

Technical Illustration
MA15-L240-C01-R
Assembly Instructions
Strip DimensionsA=8mm, B=0mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Solder the contact onto the centre core. Slide the contact into the body, ensuring that the cable braid is on the outside of the connector mandril and that the contact is located in accordance with MIL-C-39012 interface dimensional requirements.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes6.48mm Hex., Solder centre core
